VERTICAL PRESSURE SWITCH
ARICOL VERTICAL PRESSURE SWITCH JB3
Features and Benefits:
- Accurate Pressure Control: Monitors and regulates pressure from 0.2 to 10 bar with adjustable differential.
- Durable Construction: Corrosion-resistant housing ensures longevity in harsh conditions.
- Versatile Configuration: Configurable NO/NC contacts for tailored system integration.
- High Pressure Tolerance: Withstands up to 16 bar for reliable operation.
- Easy Installation: Vertical design with included hardware simplifies setup.
- Wide Temperature Range: Operates effectively from -10°C to +80°C.
- Compact Design: Space-saving solution for upright piping systems.
- IP54 Protection: Offers resistance to dust and water splashes.
- Wide Application: Ideal for water pumps, HVAC systems, and industrial fluid control.
Description

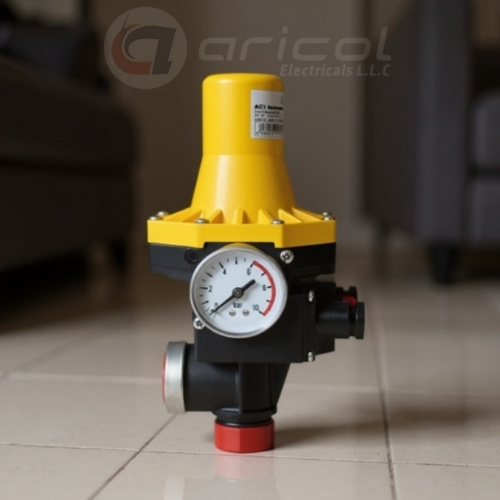

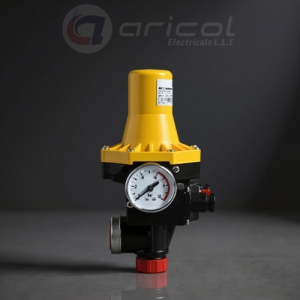

The Aricol Vertical Pressure Switch (ALPSJB3) is a professional-grade control device engineered to deliver accurate and reliable pressure monitoring and regulation for a wide range of industrial, commercial, and residential applications, including water supply systems, HVAC units, and fluid handling equipment. Constructed with a durable, corrosion-resistant housing, this vertical pressure switch ensures long-term performance in challenging environments. Featuring a precision diaphragm or piston mechanism, it activates or deactivates connected systems based on preset pressure thresholds, providing effective protection against overpressure or under pressure conditions. Its vertical configuration allows for easy integration into upright piping systems, with adjustable settings for customized operation. Supplied with mounting hardware, this pressure switch is ideal for contractors, facility managers, and industrial professionals seeking a versatile, low-maintenance, and efficient solution for pressure control.
Specifications:
- Model: ALPSJB3 (Aricol Vertical Pressure Switch JB3)
- Type: Vertical Pressure Switch
- Material: Corrosion-resistant metal and plastic housing
- Pressure Range: 0.2 to 10 bar (confirm exact range)
- Switch Differential: Adjustable (confirm exact range, e.g., 0.5-2 bar)
- Max Operating Pressure: 16 bar (confirm exact rating)
- Voltage Rating: 250V AC
- Current Rating: 10A
- Contact Type: Single Pole Single Throw (SPST) Normally Open (NO) or Normally Closed (NC) (configurable)
- Operating Temperature: -10°C to +80°C (confirm exact range)
- Connection: 1/4″ or 1/2″ BSP male/female (confirm exact type)
- Mounting: Vertical with included hardware
- Protection Rating: IP54 (confirm exact rating)
- Dimensions: 120x80x100mm (confirm exact size)
- Weight: 0.9kg (confirm exact weight)
