FLOAT SWITCH
FLOAT SWITCH
Features and Benefits:
- Accurate Level Control: Activates or deactivates pumps based on precise liquid levels.
- Durable Construction: Corrosion-resistant materials ensure longevity in wet conditions.
- Flexible Cable Lengths: 3m or 5m options for versatile installation heights.
- Hermetically Sealed Switch: Provides reliable performance with IP68 water protection.
- Wide Compatibility: Suitable for various liquids with a minimum specific gravity of 0.7.
- Easy Installation: Weighted cable allows simple suspension and adjustment.
- Configurable Contacts: Offers NO or NC settings for tailored pump control.
- Wide Temperature Range: Operates effectively from 0°C to +60°C.
- Low Maintenance: Robust design minimizes upkeep requirements.
- Wide Application: Ideal for water tanks, sumps, wells, and sewage systems.
Description

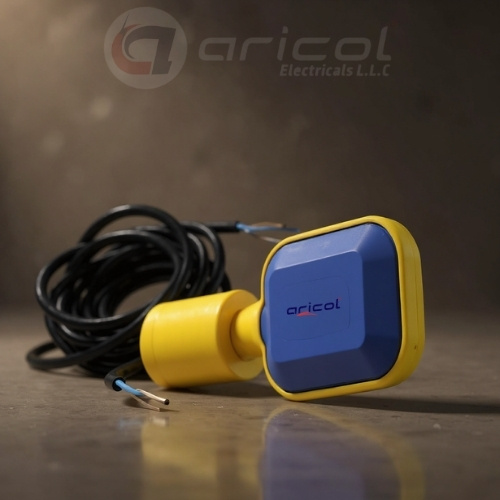

The Aricol Float Switch is a professional-grade water level control solution engineered to provide accurate and dependable monitoring for a variety of residential, commercial, and industrial applications, including tanks, sumps, and pump systems. This series includes two models—ALFS3M (with a 3-meter cable) and ALFS5M (with a 5-meter cable)—each crafted from durable, corrosion-resistant materials to ensure long-lasting performance in wet environments. Featuring a simple yet effective float mechanism with a hermetically sealed magnetic reed switch, it activates or deactivates pumps based on liquid levels, preventing overflow or dry running. Its robust design includes a weighted cable for stability and adjustable positioning, making it suitable for a wide range of liquid types. Supplied with easy-to-install mounting options, this float switch is perfect for homeowners, contractors, and facility managers seeking a reliable, low-maintenance, and versatile solution for water level management.
Specifications:
- ALFS3M (Float Switch with 3mtr Cable):
- Type: Float Switch
- Cable Length: 3 meters
- Material: Corrosion-resistant plastic and rubber
- Switch Type: Hermetically sealed magnetic reed switch
- Max Voltage: 250V AC
- Max Current: 10A
- Operating Temperature: 0°C to +60°C
- Specific Gravity: 0.7 minimum
- Contact Type: Normally Open (NO) or Normally Closed (NC) (configurable)
- Mounting: Suspended with weighted cable
- Protection Rating: IP68
- Dimensions: 100x70mm (float, confirm exact size)
- Weight: 0.4kg (confirm exact weight)
- ALFS5M (Float Switch with 5mtr Cable):
- Type: Float Switch
- Cable Length: 5 meters
- Material: Corrosion-resistant plastic and rubber
- Switch Type: Hermetically sealed magnetic reed switch
- Max Voltage: 250V AC
- Max Current: 10A
- Operating Temperature: 0°C to +60°C
- Specific Gravity: 0.7 minimum
- Contact Type: Normally Open (NO) or Normally Closed (NC) (configurable)
- Mounting: Suspended with weighted cable
- Protection Rating: IP68
- Dimensions: 100x70mm (float, confirm exact size)
- Weight: 0.5kg (confirm exact weight)
Brand
ARICOL
